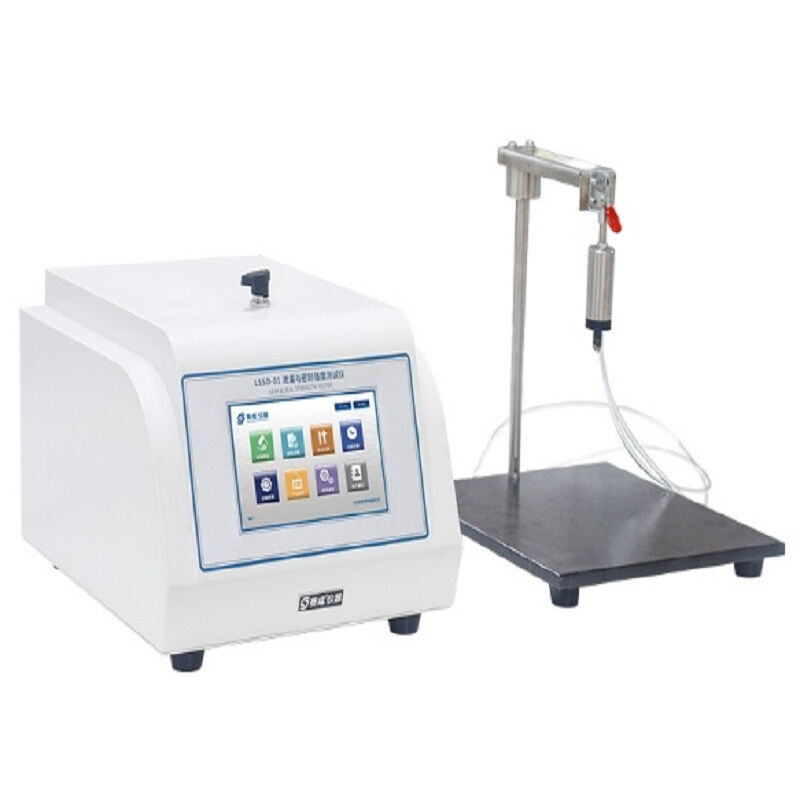

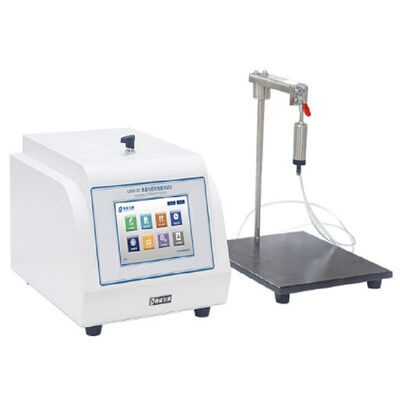

DH-LLSD-01 Leakage and Seal Strength Tester Internal Pressure Burst Strength Tester
It is suitable for quantitative determination of sealing strength, heat sealing quality, bursting pressure of the whole bag, and sealing leakage performance of various soft packaging pieces and aseptic packaging pieces formed by various heat sealing and bonding processes, quantitative determination of sealing performance of various plastic anti-theft bottle caps, and quantitative determination of overall sealing performance, pressure resistance, cap connection strength, stripping strength, heat sealing edge sealing strength, and tying strength of various hoses.
Features:
(1) 7 inch touch screen control
(2) Positive pressure design principle, simple operation, stable and reliable performance
(3) Optional test range, wide test range and wide application field
(4) Dual test methods of expansion inhibition and expansion non-inhibition
(5) Multiple test mode options including rupture test, creep test and creep to rupture test
(6) One-click operation of the test process, intelligent and high test efficiency
(7) High-definition touch screen operation of test data, automatic statistics and printing of results
(8) Test accessory support, flexible test mode and compatible with diversified
(9) Automatic pressure regulation test mode, automatic flow leak detection function
(10) Standard USB interface configuration, computer software support, multiple units of results display
(11) The product complies with the third-level authority of GMP users
(12) The test curve shows the trend of force value changes in real time during the test
Specialized computer communication software for real-time display of the test and data analysis and processing, data storage
Principle:
Positive pressure test: After filling the sample with a certain pressure of gas by setting parameters, the pressure sensor is used to detect the pressure change inside the sample to judge the overall sealing performance of the sample, and the pressure resistance and burst performance of the sample are tested with the specified air pressure.
The instrument complies with many national and international standards: GB/T 10440, GB/T 18454, GB/T 19741, GB/T 17447, GB/T 17876, GB/T 10004, GB/T 10005, BB/T 0003, BB/T 0025, QB/T 1871, YBB 00252005, YBB 00162002, ASTM F1140, ASTM F2054, ISO 11607-1, ISO 11607-2
Test Application:
Basics Application:
Plastic composite bags: Applicable to pressure rupture test of various packaging bags such as plastic film, aluminum film, paper-plastic composite, aluminum-plastic composite, etc.
Hose testing: Applicable to various cleaning products packaging hoses and other fields of goods packaging hoses. The hoses can include toothpaste tubes, facial cleansers, cosmetics, various medicinal ointment tubes, food packaging hoses, etc.
Creep test: Applicable to creep performance testing of various packaging bags, boxes, etc.
Creep to rupture: Applicable to creep to rupture performance testing of various packaging bags, boxes, etc.
Extensions Application:
Blister Pack Burst Test: Suitable for pressure test of various blister packaging.
Aerosol Valve Testing: Applicable to the sealing performance test of various aerosol valves. Aerosol valves include various insecticides, mousse, gel water, medicinal sprays, self-spray paint, etc.
Three-sided heat sealing material: Applicable to the pressure test of packaging bags with only three sides heat sealed and one side open.
High Voltage Test: The test pressure can reach up to 1.6 MPa.
Anti-theft bottle cap: It is suitable for testing the sealing performance of various anti-theft bottle caps. Anti-theft bottle caps can include cola bottle caps, mineral water bottle caps, beverage bottle caps, vegetable oil barrel caps, non-staple food seasoning bottle caps (soy sauce, vinegar, cooking wine, etc.), easy-open three-piece cans (beer, beverage cans, etc.), paper packaging cans (cylindrical, various potato chips and shrimp strips), etc.
Technical Parameter:
| Program |
Parameter |
| Testing range |
0 ~ 1MPa(Standard Model) |
| 100 kPa,400 kPa,600 kPa,1.6MPa(Optional) |
| Testing accuracy |
0.5 class (0.25 class optional) |
| Testing resolution |
0.001 kPa |
| Inflatable head |
Ф10 mm (can customize) |
| Inflation flow |
0.01 ~ 10 L/min (Optional) |
| Holding time |
1 ~ 99999 s |
| Air source pressure |
0.5MPa ~ 0.9MPa (User provided) |
| Air source interface |
Ф6mm Polyurethane tube
|
| Functional expansion |
Automatic pressure regulation and flow leak detection function (optional) |
| Dimensions |
320 mm(L)× 400 mm(B)× 265 mm(H) |
| Test stand dimension |
305 mm(L)× 356mm(B)×325mm(H) |
| Power supply |
AC 220 V 50 Hz |
| Net weight |
23 kg |
Product Configuration:
Standard configuration: host, test stand, micro printer
Optional parts: professional software, communication cable, test accessories (restraint plate test device; open packaging test device; plastic anti-theft bottle cap sealing performance test device; hose sealing performance test device; aerosol valve sealing performance test device)
Remarks: The air source interface of this machine is a Φ6mm polyurethane tube; the air source is provided by the user.

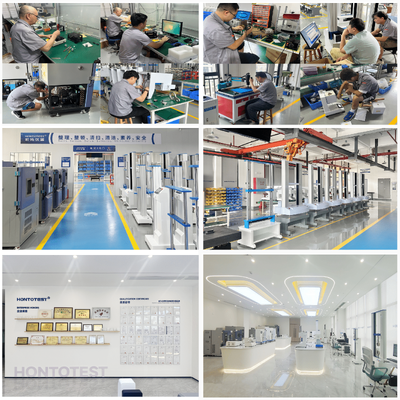

Company Information:
