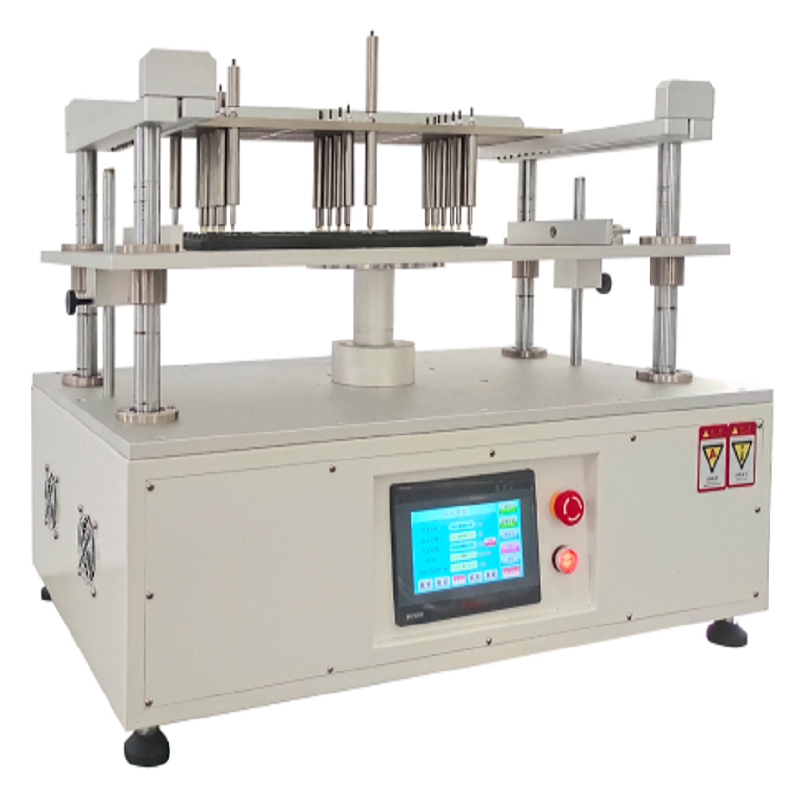

HT-KL-L Keyboard Key Life Durability Tester, Multi-station Electronic Button Fatigue Testing Equipment

HT-KL-L Keyboard Key Life Durability Tester, Multi-station Electronic Button Fatigue Testing Equipment

Introduction:

This machine can test the durability of the keys and other buttons and switches of notebook computers, mobile phones, handheld computers, etc. It can test several products at the same time (each product can be tested at multiple points), and each key can be adjusted to different pressures and different high and low pressing forces. This machine is driven by a motor and controlled by a high-definition touch screen from Taiwan. The CNC processing error of the transmission processing parts of the whole machine is small, so it has low noise and low failure rate. It uses touch screen settings and has the advantages of convenient operation and observation.

Parameter:

Action stroke:10mm (fixed)

Workpiece height adjustment range:100mm

Clamp holding capacity:600×600mm

Probe installation range:500×500mm

Number of tests:99999999 times

Test speed:60-600Rpm

Load range:50-400g (50g probe, 50g, 100g, 200g each), or customized on demand

Probe height adjustment:15mm

Number of probes:15 standard (expandable, additional cost)

Minimum spacing between two probes:30mm in X direction, 42mm in Y direction

Appearance size:Approximately700×700×680mm

Weight:160kg

Voltage:AC 220V
