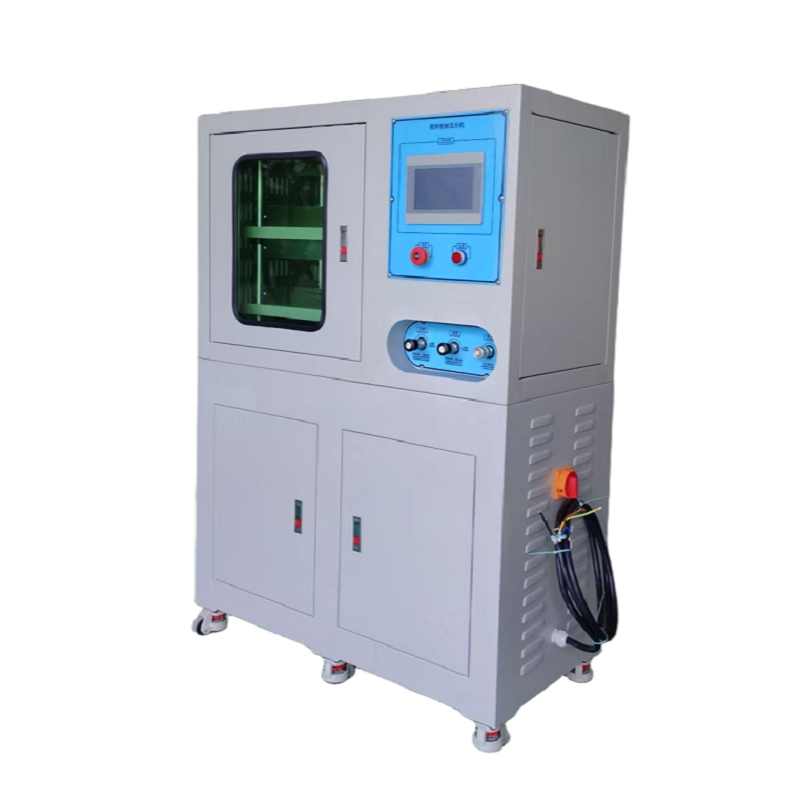

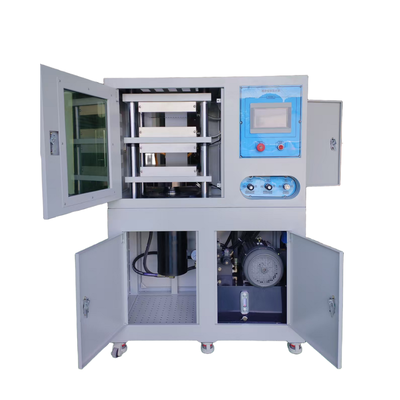

DH-FV30B 30 Ton Touch Screen Lab Flat Vulcanizing Machine for Rubber Plastic Pigment Stabilizer Material Test & Research
Introduction:
Place the experimental material in the mold and place it parallel between the heated platens of this product. Apply a certain temperature and pressure to shape the experimental material for production reference.
Features:
1. The tablet press equipment is small in size and full of functions, with stable temperature and low noise. Easy to operate, save materials, and have accurate temperature.
2. High-precision, high-wear-resistant guide pillars with strong bearing capacity, stable lifting, and has function of fast rising, slow locking, and fast falling.
3. The surface temperature of the heating platen is uniform, the temperature control is accurate, the temperature controller can accurately display temperature data, and the operation is safe and convenient.
4. Under a certain center distance, larger diameter hydraulic cylinder is allowed to be installed, thereby reducing the number of hydraulic cylinders, with simple structure and low maintenance.
5. The oil pump motor stops working when the experimental materials are pressed and formed, and has function of automatic pressure compensation. The oil circuit configuration is more reasonable and reliable.
6. The exhaust time, exhaust times, heating temperature, and pressurization time can be set, making it easy to operate.
Application:
It is mainly used in rubber and products, plastics and PVC products, pigments, masterbatch, stabilizers, and other industries. Its main purpose is to test and compare the physical properties of raw materials after molding.
For example: the glossiness of the surface of the material after molding, whether there are black spots, its strength, hardness, plasticity after adding auxiliary materials, etc.
- Universities and scientific research units: research and development of new materials, teaching use,
formula comparison and improvement
- Plastic industry: detection of tablet proofing, fisheye, black spots, stains, etc.
- Pigment industry: tableting and contrasting tablets
- Stabilizer chemical industry: tableting, testing strength and hardness
- Rubber industry: vulcanization with vulcanizing agent
Specification:
Capacity: 30 tons (can be customized)
Heating method: heating tube heating (special)
Temperature range: room temperature~300℃
Temperature control accuracy: ±3℃
Control interface: PLC programmable color touch screen, man-machine interface molding process dynamics, temperature display, pre-pressing time, pressurizing time and pressure adjustment, pressure setting and display interface can be intuitively displayed and monitored.
Temperature control method: P.I.D self-tuning mode combined with high-precision sensors, with automatic temperature compensation function.ensure temperature balance
Pressure plate material: high quality alloy steel (corrosion resistant, high temperature resistant, uniform thermal conductivity)
Platen size: 300×300mm
Pressure plate surface: mirror hard chrome treatment
Number of working layers: two working layers (upper layer heating, lower layer cooling)
Pressure plate spacing: 0~80mm
Number of exhausts: 0~10 times can be set as needed
Timer: LED digital display, 0.1~99M~9.9H time period can be set (pre-pressure time and pressure time can be preset)
Cooling method: tap water cooling (customer provides cooling water interface)
Pressure adjustment method: The pressure between 0~30T can be adjusted according to experimental needs
Casters: casters with brakes for easy movement and fixation
Equipment color: yellow (can be customized according to customer requirements)
Equipment volume/weight: about 1000*500*1450mm / about 780kg
Equipment power supply: three-phase five-wire, AC380
Total equipment power: about 9KW
Accessories:
| Accessories Name |
Qty |
| Receiving tray |
1 pcs |
| bamboo spatula |
2 pcs |
| cleaning utensils |
1 pcs |
| Gloves |
10 pcs |
| Maintenance tools (hexagonal wrench) |
1 pcs |
| Tool box |
1 pcs |
