DH-RSY-01 Film Free Shrink Tester Lab Thermal Shrinkage Testing Equipment,Plastic Packaging Film Heat Shrink Performance Test

Detalhes do produto:

Lugar de origem:	Dongguan, Guangdong
Marca:	HONTOTEST
Certificação:	CE,FCC,ISO
Número do modelo:	DH-RSY-01

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	um conjunto
Preço:	negotiable
Detalhes da embalagem:	Caixa de madeira
Tempo de entrega:	3-5 dias úteis
Termos de pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte:	300 conjuntos por mês

contacto

Descrição de produto detalhada

Tamanho da amostra:	≤140mm*140mm	Faixa de controle de temperatura:	temperatura ambiente ~ ℃ 200
Precisão do controle de temperatura:	± 0,3 ℃	Poder:	AC 220V 50Hz
Tamanho:	440 mm × 370 mm × 310 mm	Peso:	24kg

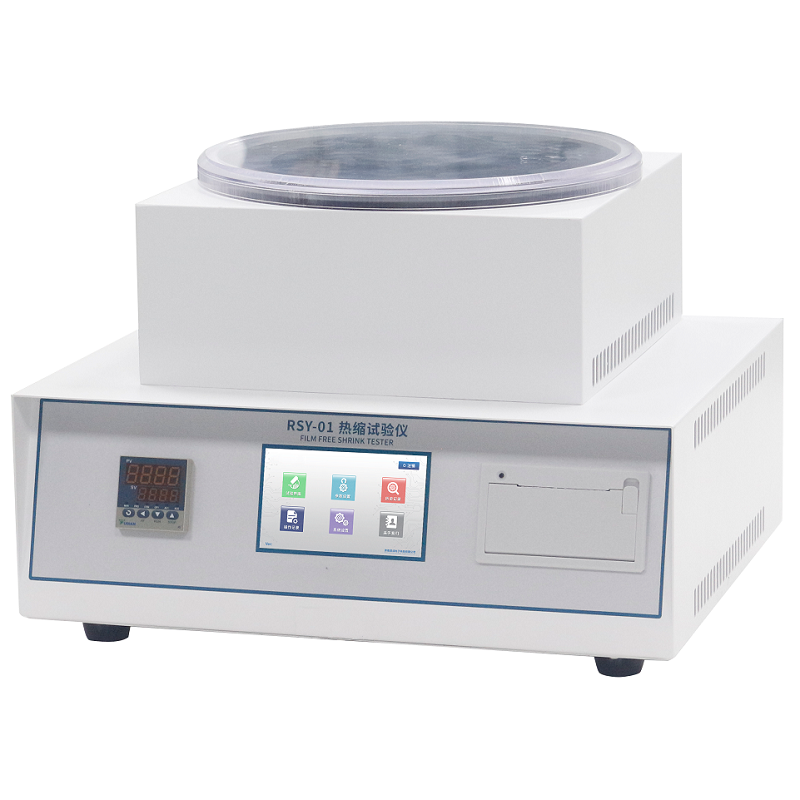

DH-RSY-01 Film Free Shrink Tester Lab Thermal Shrinkage Testing Equipment,Plastic Packaging Film Heat Shrink Performance Test

Introduction:

RSY- 01 Film Free Shrink Tester is professionally applicable to the determination of heat shrinking performance and dimensional stability of various films, heat shrinkable tubes, hard PVC films for tablets, and back-sheets in the fluid medium at different temperatures.

Technical Features:

Digital P.I.D. temperature control technology ensures the preset temperature to be reached rapidly without any fluctuation.

The instrument is heated through fluid medium, which could provide the stable test environment.

Automatic timer function to efficiently guarantee the accuracy of test data.

The instrument is controlled by micro-computer with LCD, PVC operation panel, and menu interface.

Standard clamp wire mesh support could make the test done smoothly.

Test Standards:

This instrument conforms to the following standards: GB/T 13519, ASTM D2732.

Application:

Basic Application

Film

It is suitable for testing the thermal shrinkage performance of various films in liquid media at various temperatures, such as PE thermal shrinkage film for the integrated package of alcoholic drinks, soda cans, mineral water and various beverages, as well as PVC, POF, OPS and PET shrinkage film suitable for various kinds of packaging.

Technical Data Sheet:

Model	DH-RSY-01 Film Free Shrink Tester
Sample size	≤140 mm×140 mm
Temperature control range	Room temperature ~ 200 ℃
Temperature control accuracy	±0.3℃
Power	AC 220V 50Hz
Size	440 mm (L) × 370 mm (W) × 310 mm(H)
Weight	24kg
